一. 主要用途 Application Occasions
CGF風機適用於汽車裝備測試，可完全模擬實際風速，對汽車、商用車等車輛進行各類性能要求的測試。
CGF fan is suitable for automobiles equipment test. It can fully simulate the actual wind speed and test various performance requirements of vehicles such as automobiless and commercial vehicles.二 . 性能優勢 Performance Features1.耐腐蝕：風機外表麵采用特殊外表麵處理，具有更好的耐腐蝕性。2.獨特可移動設計：風機裝備帶鎖萬向輪，帶推拉扶手，可手動在地麵上移動，靈活操作，使工作範圍更大；另加風機固定鎖止機構，防止大風量時風機移動。3.獨特上下升降設計：配電動升降台和固定支架，可根據工作環境調節風機出風口的高度，升降平穩，出風口據地最小距離100mm，最高距離800mm。1. Corrosion resistance: the outer surface of fan is treated with special surface treatment, which has better corrosion resistance.
2. Unique movable design: the fan is equipped with universal wheels with lock and push-pull armrest, which can be manually moved on the ground, and can be operated flexibly to enlarge the working range; in addition, the fixed locking mechanism of the fan is added to prevent the fan from moving when the air volume is large.

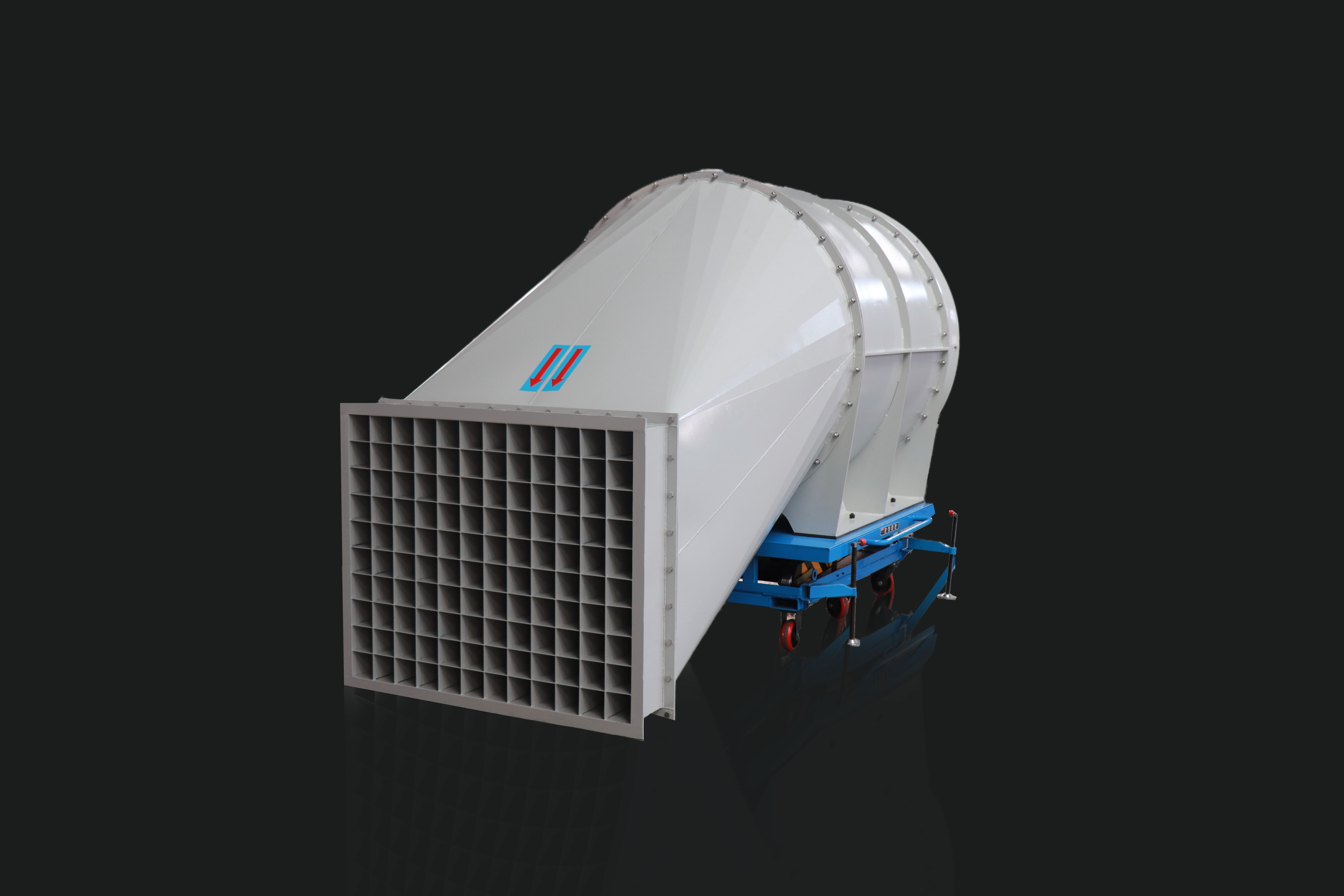

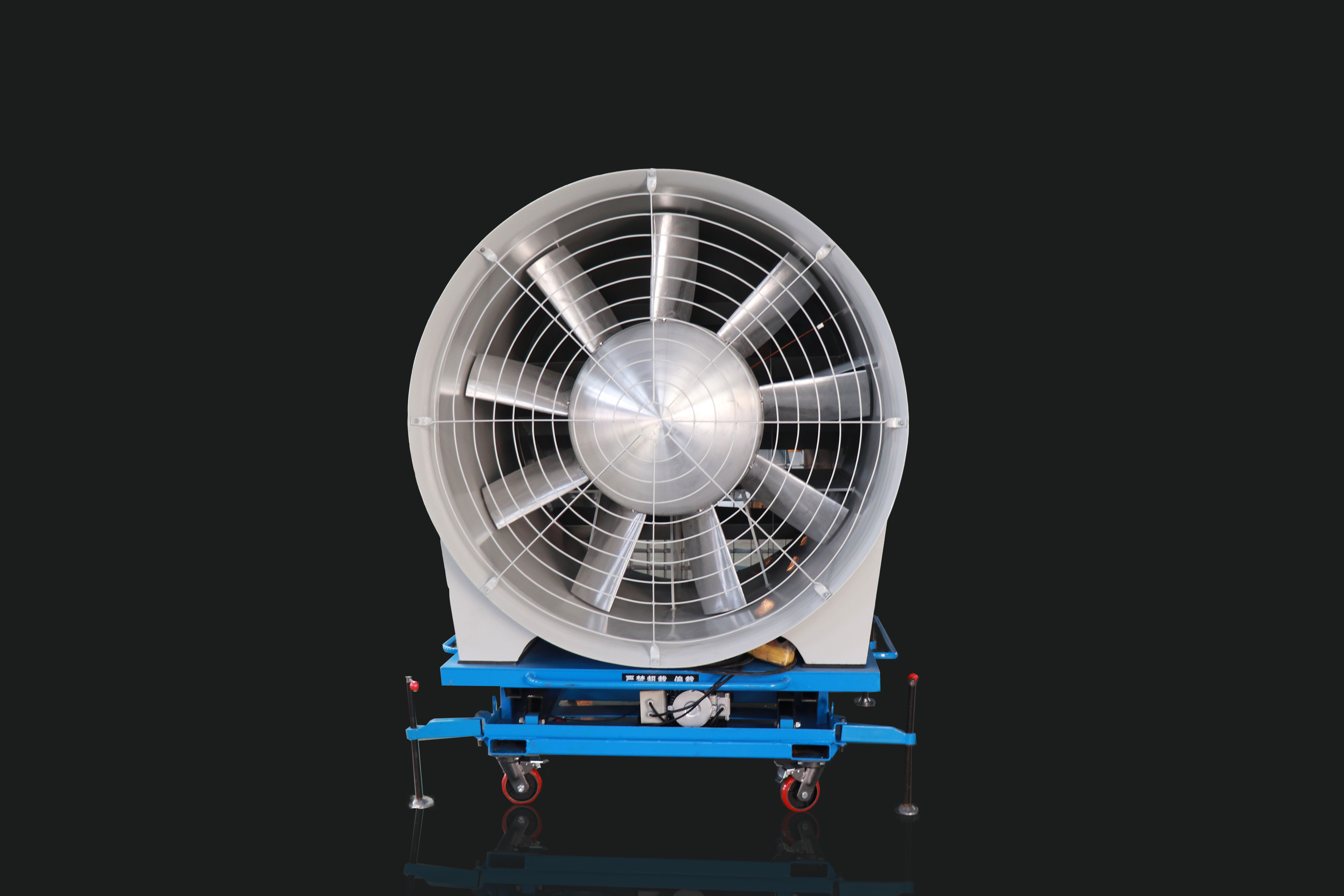

3. Unique up and down lifting design: equipped with electric lifting platform and fixed support, the height of the fan outlet can be adjusted according to the working environment, and the lifting is stable. The minimum distance of the air outlet to the ground is 100 mm, and the maximum distance is 800 mm.三 . 結構特點 Strcture CharacteristicsCGF風機主要由進口導流器、進口防護網、導葉、葉輪、電動機、外殼、出口集流器、出口變徑、滾輪及電動升降台組成，風機為直接傳動。輸送介質為無塵空氣。CGF fan is mainly composed of inlet deflector, inlet protection net, guide vane, impeller, motor, shell, outlet collector, outlet reducer, roller and electric lifting platform. The fan is directly driven. The conveying medium is dust-free air.1.進風導流罩 Inlet air guide hood減少進氣渦流損失，使氣流能平穩順暢地進入葉輪。
Reduce the loss of intake swirl, so that the air flow can smoothly enter the impeller.
葉片采用高強度鋁合金，經過CFD模擬計算，葉型為機翼變厚扭曲葉型，具有良好的氣動性能，鋁合金葉片減小葉輪重量，增加軸承使用壽命。出廠前均完成嚴格葉輪動平衡G2.5。
The blade is made of high-strength aluminum alloy. After CFD simulation, the blade profile is a twisted blade with thickened wing, which has good aerodynamic performance. The aluminum alloy blade reduces the weight of the impeller and increases the service life of the bearing. Strict dynamic balance g2.5 has been completed before delivery.
Made of galvanized steel plate with high strength.
4.電動升降台和固定支架 Electric lifting table and fixed bracket風機垂直升降采用電動控製，水平移動采用手動控製。
The fan moves up and down with electric control, and the left and right movement adopts manual control.
5.電機 Electric machinery電機內置智能控製模塊，配備高精度調速功能，具有轉速恒定、效率高、壽命長、低噪聲等優點。
Built-in intelligent control module, equipped with high precision speed regulation function, with constant speed, high efficiency, long life, low noise and other advantages.
進口集流器可采用不鏽鋼或鍍鋅板製作，模具液壓成型，集流器弧度配合葉輪進氣要求，有效減少了渦流噪聲、提高整機效率。
The imported collector can be made of stainless steel or galvanized sheet, the mold hydraulic molding, the collector radian with impeller inlet requirements, effectively reduce the eddy current noise, improve the efficiency of the machine.
四 . 設計與製造標準 Design And Manufacturing Standards
-
GB/T3235-2008 通風機基本型式、尺寸參數及性能曲線
-
GB/T1236-2000 工業通風機用標準化風道進行性能試驗
-
JB/T6445-2005 工業通風機葉輪超速試驗
-
JB/T10214-2000 通風機鉚焊件技術條件
-
JB/T6411-1992 暖通、空調用軸流通風機
-
JB/TQ339-1984 通風機產品外觀質量與清潔
-
JB/T8690-1998 工業通風機噪聲限值
-
JB/T10213-2000 通風機焊件質量檢驗技術要求
-
JB/T8689-2014 通風機振動檢測及其限值
-
JB/T9101-1999 通風機轉子平衡
-
JB/T6886-2005 通風機塗裝技術條件
-
JB/T10178-1988 通風機現場試驗
Standard specification:
-
GB / T3235-2008 basic types, size parameters and performance curves of fans
-
GB / T1236-2000 performance test of standardized air duct for industrial fans
-
JB / T6445-2005 industrial fan impeller overspeed test
-
JB / T10214-2000 specification for riveting and welding parts of fan
-
JB / T6411-1992 axial fan for HVAC
-
JB / TQ339-1984 fan appearance quality and cleaning
-
JB / T8690-1998 Noise limits for industrial fans
-
JB / T10213-2000 technical requirements for quality inspection of fan Weldments
-
JB / T8689-2014 fan vibration detection and its limits
-
JB / T9101-1999 fan rotor balance
-
Jb-2005 / t6886 Technical conditions for fan painting
-
JB / T10178-1988 field test of fan

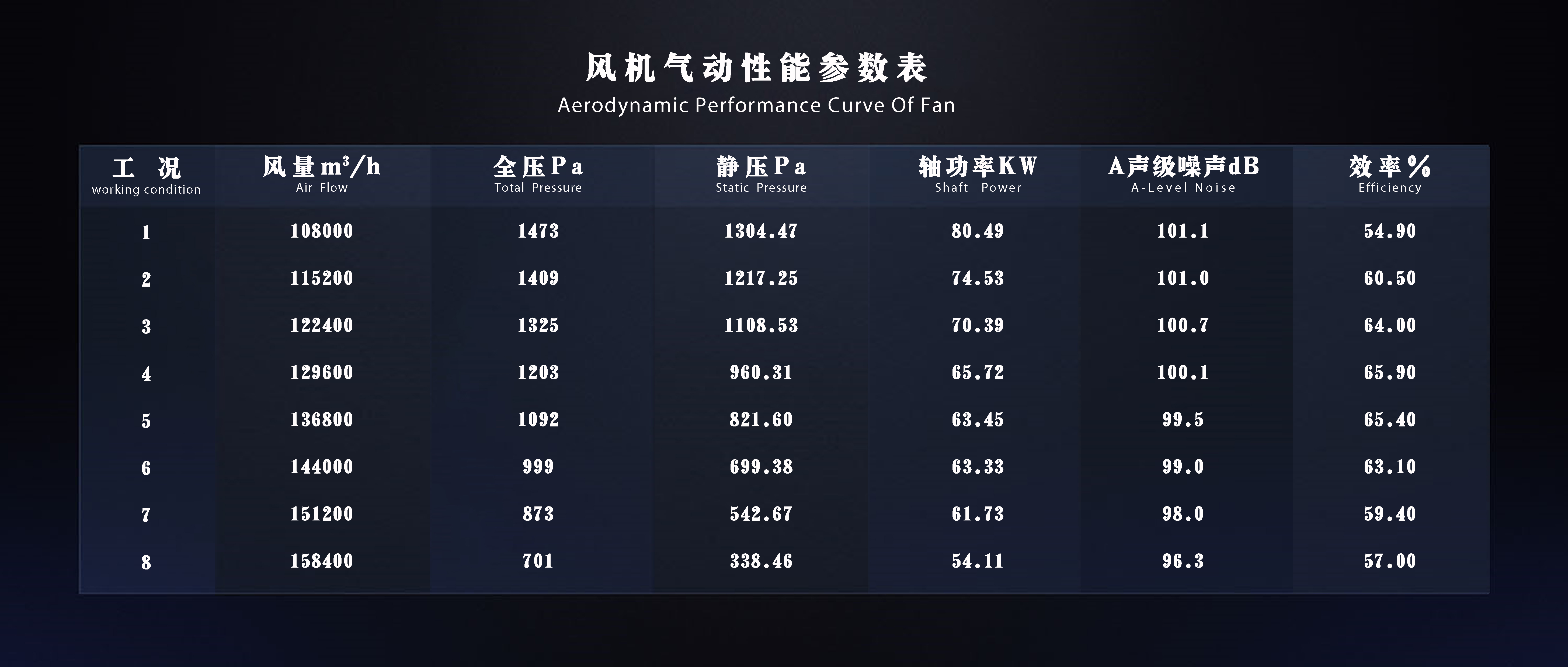

五 . 風機性能參數表 Performance Parameters
|
